The LPEO-560 line serves for the production of two-sided veneered panels with a “sandwich” structure, obtained from waste material, with a length from 600 to 2300 mm.

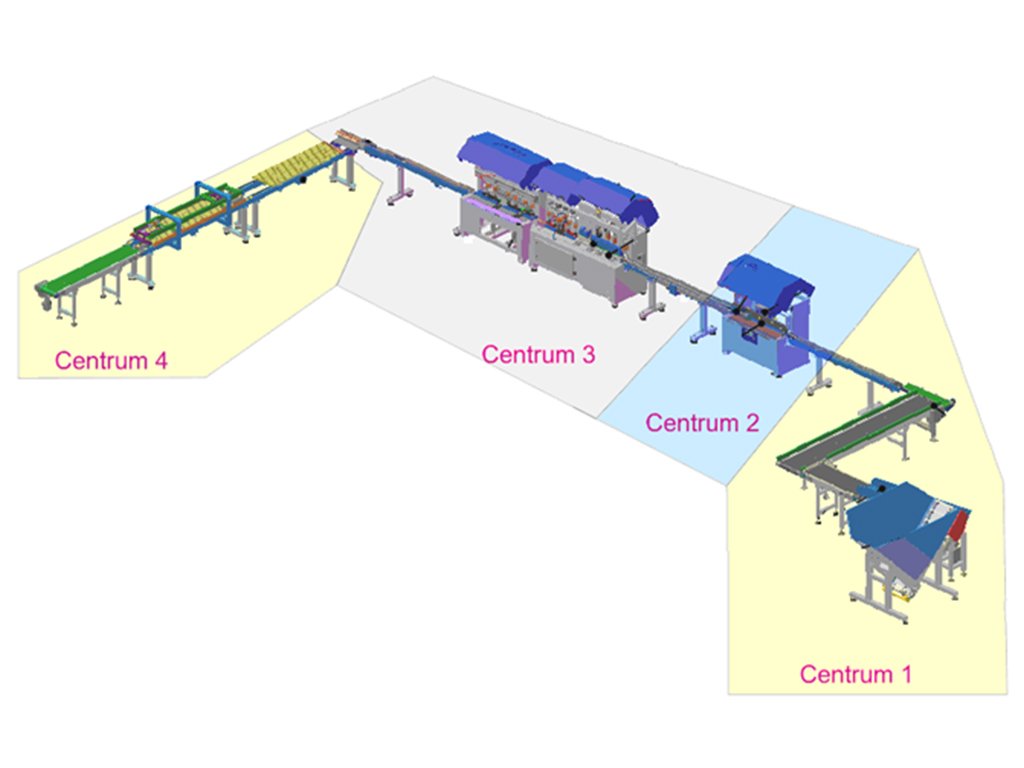

The line consists of several devices grouped into centers.
- Center 1 – element sorting and loading,
- Center 2 – formatting,
- Center 3 – preliminary joining with a wire and cutting to length,
- Center 4 – “sandwich” assembly.
For filling production, we assume the use of waste elements from wood element processing.
TECHNICAL AND OPERATIONAL DATA: | ||
Parameters of the processed element: - width - length - thickness |
mm mm mm |
40-65 70-400 15-30 |
Parameters of the veneered panel: - width - length - thickness |
mm mm mm |
560 600-2300 50-70 |
Line output | pieces. | approx. 170 panels per shift |
According to the customer’s needs, the LPEO-560 line is individually configured depending on the accepted process and production assumptions.
